Place of Origin: | China |
Brand Name: | PBT |
Certification: | CCC, FCC, UL |
Model Number: | D10 |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Wooden case/Carton + Pearl wool + Poly bag |
Delivery Time: | 25 to 35 days |
Payment Terms: | T/T |
Supply Ability: | 2,000 sets/month |
High Light: | lcd digital signage,digital signage advertising |
---|

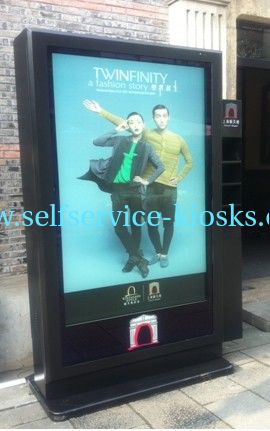

Outdoor street Digital Signage Kiosk , Self Service bill payment kiosks
Quick details
1,55 Inches Touch Screen
2,Free Standing
3,Outdoor design
Product feature:
1,Large display 42" to 55", touch screen is optional.
2, Complete outdoor design, use under environment (-40, +65centigrade)
Specification
Computer |
Industrial PC |
Mainboard |
Industrial motherboard |
|
Output ports |
1 HDMI port, 1 AGA port, 1 RJ45 port, 1 RCA port, 2 USB ports. |
|||
Input Ports |
2 HDMI ports, 1 VGA port, 1 YPbPr port, 1 RS232 port |
|||
Embedded System |
Linux |
|||
Monitor 55'' |
SAMSUM |
Diagonal |
55 inch |
|
Brightness |
2000cd/㎡ |
|||
Resolutions |
1920*1080 |
|||
Response Time |
8ms |
|||
Contrast |
(3500:1 |
|||
Toush Screen 55'' |
55" Infrared Touch Screen |
Resolution |
4096x4096 |
|
Light Transmittance |
90%~92% |
|||
Thikness |
3.0mm |
|||
Durability |
Wears over 50 000 000 times single touch |
|||
Positioning Accuracy |
3mm |
|||
Working Temperature |
(-40℃~+55℃ |
|||
Interface |
USB, RS232 |
|||
Certificate |
CE,FCC |
|||
Working environment |
Working environment |
Working Temperature |
(-40℃~+55℃ |
|
Working humidity |
≤90%RH |
|||
Power supply |
1500W |
|||
Protect level |
IP65 |
|||
Temperature control system |
Air Conditioner+Fan |
Air Conditioner and Fan |
Constant temperature design. Will automatically start/stop heating/cooling at designated temperature and humidity. |
|
Anti UV, Anti glare Glass |
AR Glass |
Thikness |
6.67mm |
|
Visible Light Transmittance |
>95% |
|||
Visible Light Reflectance |
<4% |
|||
Glass Hardness |
>7H |
|||
Camera |
Buid-in camera |
safe camera |
Outdoor round-the-clock video surveillance |
|
Motion sensor |
Motion sensor |
Motion sensor |
To alarm when kiosk moved or opened. |
|
Light-adjusting function |
Screen brightness auto-adjust according to the enviroment brightness. Saving electricity and comfortable display effect. |
|||
Other functions |
Wifi module, shockproof and anti-thunder, GPS sensor, alarm button |
|||
Accessories |
Anti-theft locks, Sockets, Speakers |
|||
Cabinet |
Outdoor design |
Cold-rolled Steel case; thickness: 1.5mm-2mm ; Powder coating & surface processing. Anti-vandalism, water proof, Anti-rust,Anti-acid,Anti-dust,Static free, color painting and LOGO printing upon request. |
||
